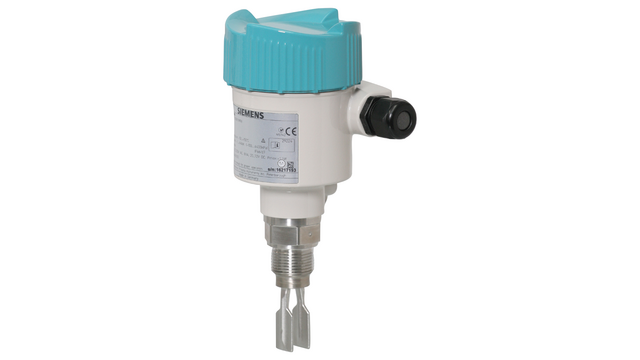

SITRANS LVL200

SITRANS LVL200

SITRANS LVL200 represents an advanced solution for level detection in both liquid and slurry media. With its compact insertion length of only 40 mm (1.57 in), it is ideal for use in confined spaces, offering easy mounting and versatility in applications.

This standard vibrating level switch is designed for material detection in various applications including overflow, high/low level detection and pump protection, also suitable for use in SIL-2 applications.

With a robust design, the LVL200 is suitable for a variety of industrial environments and offers fault monitoring for corrosion, vibration loss or cable failure to the piezo drive, contributing to increased reliability.

Benefits and applications

✅ Reliable technology: SITRANS LVL200 utilises proven vibratory level switch technology adapted for liquid media and slurries.

✅ Compact design: Ideal for applications with limited space thanks to the compact insert length.

✅ Safety certification: Meets the functional safety requirements (SIL 2) and is suitable for use according to IEC 61508 and IEC 61511.

✅ Many areas of use: Ideal for various industrial applications including process industries and can be used with products that have a minimum density of > 0.5 g/cm³ (0.018 lb/in³).

Contact us for more information on how SITRANS LVL200 can be integrated into your processes.

Area

40 mm to 4000 mm (1.57″ to 13 feet)

Process temperature

-196 to 450 °C (-321 to 842 °F)

Process printing

-1 to 160 bar (-14.5 to 2320 psig)

Available versions

Compact, rod, and high temperature

Outputs

Relay, NAMUR, transistor, 8/16 mA, contactless

Alternative

SIL 2, sanitary and marine authorisations

Primary applications

Used in liquids and slurries for point level measurement, overfill protection and dry running protection

Brand

Siemens

Siemens is a recognised supplier of level measurement and gas analysis systems. With their innovative technology and robust design, Siemens products ensure accurate measurements and reliable performance in demanding environments.
